INFOGRAPHICANIMATION
INFOGRAPHIC WORKFLOW
Design
Data Visualization
Find Idea / Reference
Create animation with After Effect
export to JSON or Sprite images
Create Timeline animation with GSAP
Done
WHEN TO USE CSS OR JS ANIMATION
CSS

ANIMATION

  • Percentage based animation
  • Simple Animation
  • 2 keyframes
  • simple transition
  • can't produce some complex easing
JS

ANIMATION

  • timeline based animation
  • Complex animation
  • 2 or More keyframes
  • story telling animation
  • Interactive website
  • advance scrolling animation
  • easy to sync with other animation
  • easy to use easing
GSAP VS CSS
playreverse
GSAP
	var tl = new TimelineLite();
	tl.staggerFrom('.box', 0.5,
	{
		opacity:0,
		scale:0,
		rotation:-180
	},
	0.3)
	.staggerTo('.box', 0.3, {scale:0.8}, 0.3, 0.7);
CSS
.animated {
	-webkit-animation-fill-mode: both;
	-moz-animation-fill-mode: both;
	animation-fill-mode: both;
	-webkit-animation-duration: 1s;
	-moz-animation-duration: 1s;
	animation-duration: 1s;
}
@-webkit-keyframes introAnimation {
	0% {
		-webkit-transform: scale(0) rotate(-180deg) ;
		opacity: 0;
	}
	50% {
		-webkit-transform: scale(1) rotate(0deg) ;
		opacity: 1;
	}
	70% {
		-webkit-transform: scale(1) rotate(0deg);
	}
	100% {
		-webkit-transform: scale(0.8) rotate(0deg);
	}
}
.introAnimation {
		-webkit-backface-visibility: visible !important;
		-webkit-animation-name: introAnimation;
		-moz-backface-visibility: visible !important;
		-moz-animation-name: introAnimation;
		backface-visibility: visible !important;
		animation-name: introAnimation;
	}
	.two {
		-webkit-animation-delay: 0.3s;
		-moz-animation-delay: 0.3s;
				animation-delay: 0.3s;
	}
	.three {
		-webkit-animation-delay: 0.6s;
		-moz-animation-delay: 0.6s;
				animation-delay: 0.6s;
	}
	.four {
		-webkit-animation-delay: 0.9s;
		-moz-animation-delay: 0.9s;
				animation-delay: 0.9s;
	}
ANIMATION TOOLS

CSS LIB

  • Animate.css
  • easing css
  • AOS

JS LIB

  • GSAP
  • ANIME JS
  • Velocity JS
  • Three JS
  • Morph JS
  • Scrollmagic

CHART LIB

  • D3 (SVG)
  • Chart.JS (Canvas)

Motion Graphic Tool

  • After Effects
  • SVG Generator
  • BodyMovin
  • Easing AeScript
  • Adobe Illustrator
PROCESS ANIMATION FILE

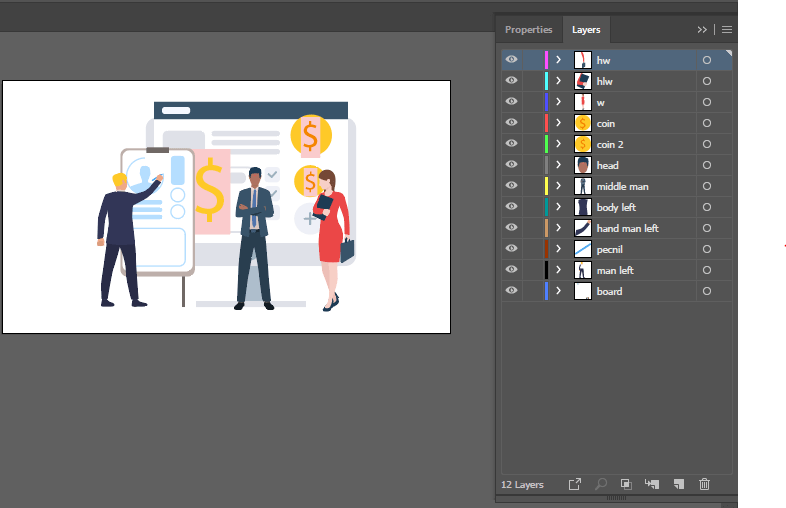

1. Adobe Illustrator /Photoshop

2. Adobe After Effects

3.A Export with Bodymovin

3.B Export Png sequence for Sprites Image

4. Import in HTML

Frame Per Second (FPS)

12 FPS

manon-12

24 FPS

manon-24

60 FPS

manon-60

SPRITES IMAGES

12 FPS

manon-12

24 FPS

manon-24

60 FPS

manon-60
LOTTIE FILES / BODYMOVIN
	import $ from 'jquery';
	import Lottie from 'lottie-web';
	import { TimelineMax, Linear, TweenLite, Bounce, Elastic } from 'gsap';
	import dataLottie from 'data.json';
	export default () => {
			const element = $('.element');
			const Animation = Lottie.loadAnimation({
			container: element[0],
			renderer: 'svg',
			loop: true,
			autoplay: true,
			animationData: dataLottie,
		});
	};
XBOILERPLATE INFOGRAPHIC
XINFOGRAPHICS
    const option = {
			data: data.json, //Data Chart
			ease : 'EaseOut' //Easing
			type: 'pie', //type of chart currently only bar and pie
			maxHeight: 660, //max heigth of chart
			orientation: "landscape", //portait/landscape
			title: "string",
			delay : 1 //float,
			images : 'array'
		};

		$(selector).xInfographics(option);
Example
JUMPWALKRUN
manon-24manon-24manon-24
manon-24
